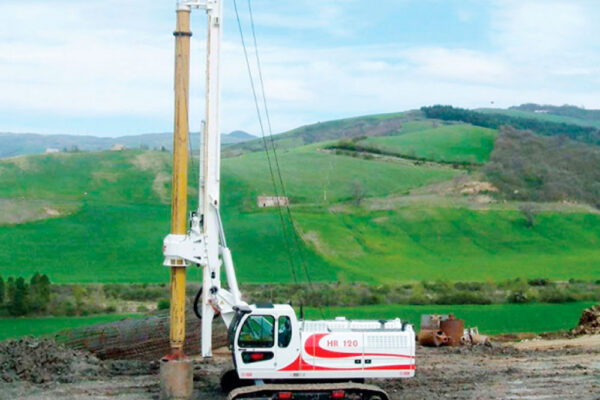

The HR 120 is a multipurpose compact drilling rig suitable for medium to large diameter drilled shafts, for drilling in any kind of soil by using a rotary system with kelly bar, augers and buckets. The HR 120 utilizes friction or interlocking kelly bars for various depths. The cabin has been designed to offer maximum efficiency and comfort for the operator and it can also be equipped with an electronic depth counter, automatic levelling system and air conditioning and heating system.
The HR 120 comes mounted on expandable crawler, but can even be mounted on a truck.
In either version, the kelly bar does not have to be removed for transport, which decreases the transport costs and set-up time on the jobsite. The HR 120 can be configured for works for Bored Piles, Continuous Flight Auger (CFA) and even Diaphragm Walls by use of kelly.
Works with Augers & Buckets:
| Max diameter | 450 / 1.300 mm | 1.5 / 4.3 ft |
| Without lower mast extension | 1.500 mm | 5 ft |
| Depths | 35 – 40 m | 114 – 131 ft |
Works with CFA:
| Max diameter | 600 mm | 2 ft |
| Depths | 10 + 4 m | 33 + 13 ft |
Diaphragm Walling:
| Max diameter | 600 x 2.500 mm | 2 x 8 ft |
| Depths | 20 m | 65.5 ft |
Rotary:
| Nominal torque | 120 KNm @ min 10 max 36 rpm | 88,500 lbsft |
| Unloading speed | 160 rpm | |
| Rotary stroke | 2.500 mm (4.300 mm on request) | 8 ft (14 ft on request) |
Winches:
| Main winch nominal pullback | 120 KN | 26,500 lbs |
| Auxiliary winch nominal pullback | 72 KN | 16,000 lbs |
Diesel Engine: CATERPILLAR C9 ACERT
| Power | 129 KW 2.200 rpm | 173 HP @ 2,200 rpm |
| Hydraulic installation | 4 pumps | |
| Hydraulic oil tank | 460 litres | 121 gal |
| Fuel tank | 145 litres | 38 gal |
Expandable Crawlers:
| Lenght | 4.170 mm | 13.7 ft |
| Width | 2.500 – 3.600 mm | 8 ft – 12 ft |
| Shoes | 600 mm | 2 ft |
| Approx. Weight: | 28 tons | 62,000 lbs |
